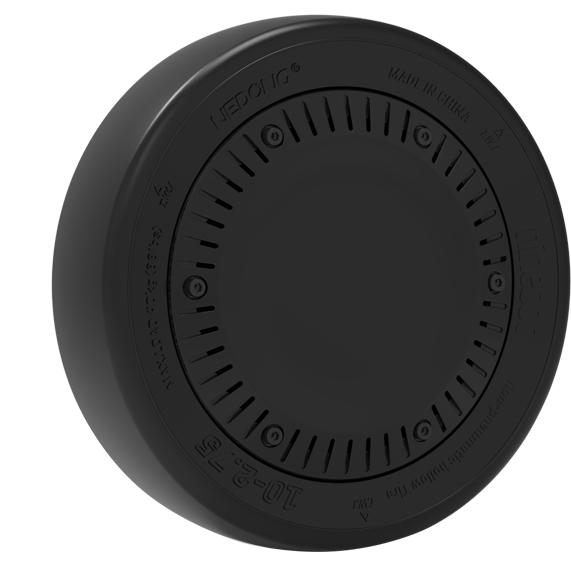

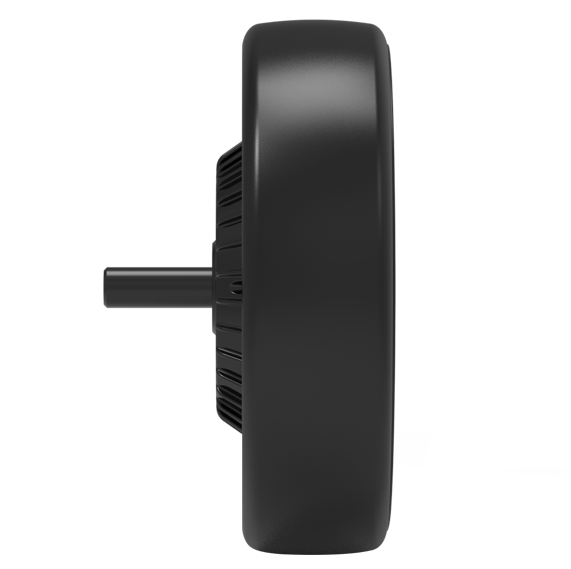

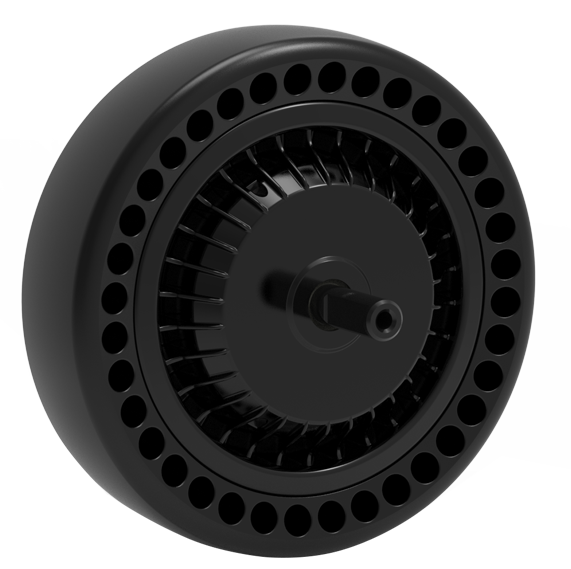

10＂Single side motor

JINYUXING
The world's leading electric light vehicle motor expert

Product parameters:

工作電壓（V）:  36-72

額定功率（W）:  350-800

峰值功率（W）:  500-1600

空載轉速:  800-1600

額定轉速:  700-1300

峰值扭矩（N.m）:  18-47

峰值效率（%）:  83

防護等級（IP）:  X6

絕緣等級:  B

傳感器類型:  霍爾

制動器類型:  電子剎

最高行駛速度（Km/h）:  50

Working voltage （V）:  36-72

Rated power （W）:  350-800

Peak power （W）:  500-1600

No-load speed （rpm）:  800-1600

Rated speed （rpm）:  700-1300

Peak torque （N.m）:  18-47

Peak efficiency （%）:  83

Protection level （IP）:  X6

Insulation level:  B

Sensor type:  Hall

Brake type:  Electronic brake

Maximum running speed （Km/h）:  50

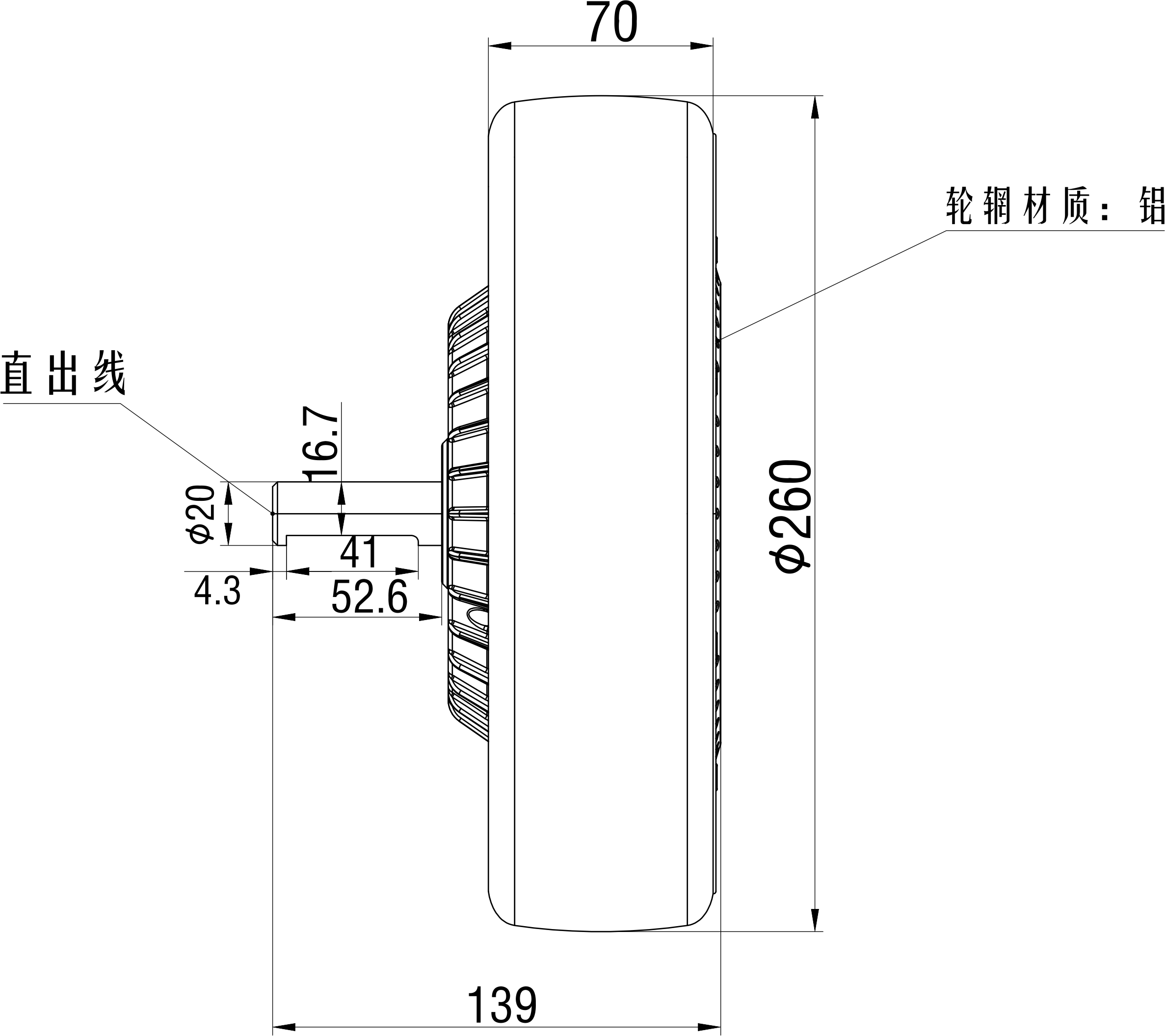

Product size:

輪輞寬度:  54

輪輞材質:  鋁

輪胎裝置位置尺寸:  180

帶輪胎外徑:  254

電機軸軸長:

電機軸開檔:  45.3

電機軸出線方式:  直出線

扁方尺寸:

電機軸螺紋尺寸:

Rim width:  54

Rim material:  Aluminium

Mountiing position size of tyre:  180

Outer diameter of tyre included:  254

Motor shaft length:

Motor shaft drop out size:  45.3

Motor shaft outlet mode:  Straight outlet

Shaft flat size:

Motor shaft thread size:
